License Plate Recognition Parking System

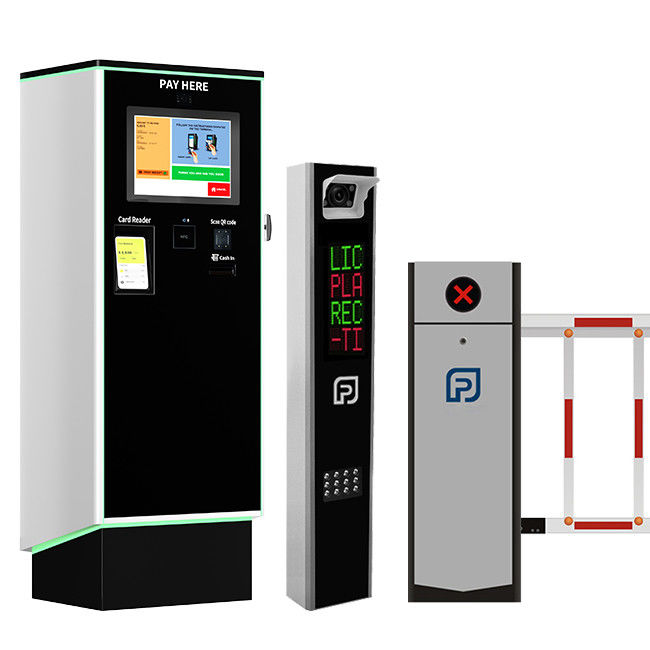

Digital Parking Payment Kiosk with 19.1" LCD Smart ANPR Parking Ticket System

Name: Digital Parking Payment Kiosk with 19.1" LCD Smart ANPR Parking Ticket System
Brand: Shenzhen Realpark Co., Ltd.
SKU: RPL-POF-PS01
Price: 491.00 USD
Availability: InStock

Brand Name:	Realpark
Model Number:	RPL-POF-PS01
MOQ:	1 set
Price:	Welcome to contact us!
Delivery Time:	1-2 weeks
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE and ISO9001

Part Number:

RP-POF-PS01

Payment Method:

Bank Card, ATM, QR Code, Coin, Banknotes

Display:

19.1" Touch Screen Display

Installation:

Floor-standing

Wooden Package Size:

L58*W73*H180cm

Gross Weight:

180kgs

Part Name:

Auto Pay Machine

Products Type:

AutoPay Parking Station

Payment Methods:

Cash, Credit/debit Cards, Mobile Payments

Warranty:

1 Year

Packaging Details:

62*75*180cm/147kgs/set/Wooden

Supply Ability:

100sets/Month

Product Description

Digital Parking Payment Kiosk with 19.1" LCD Smart ANPR Parking Ticket System

The Digital Parking Payment Kiosk features a 19.1" LCD and incorporates a Smart ANPR (Automatic Number Plate Recognition) system for efficient parking ticket management. This advanced solution streamlines the payment process, enhances security, and improves the overall user experience in parking facilities.

Digital Parking Payment Kiosk with 19.1" LCD Smart ANPR Parking Ticket System 0

Auto Pay Station Configuration POF
No.	Module	Specifications	Technical Parameters
1	Main control module	Specify	Motherboard: 10 RS-232 ports, 8 USB ports, 2 1000M network ports, Display interface: 1VGA+1HDMI, integrated sound card, graphics card, network card, USB; CPU: Intel I5 4th generation; Memory: 4G, Hard disk: SSD 120G.
2	Host chassis + power supply	Specify	400W power supply
3	Display capacitive touch integrated screen	Specify	The screen size is 19 inches, the response time is 6ms, the brightness is 260 Nits, the contrast ratio is 700:1, and the viewing angle is 130 degrees horizontally and 110 degrees vertically.
4	Banknote circulation module	Specify	High capacity, high security bill validator Proven field reliability Easy maintenance with free firmware updates Lockable, removable cash drawer for up to 1000 notes Superior performance - auto-centering technology straightens notes before reading Accepts notes up to 85mm wide and standard industry barcode tickets Power supply:Required: 12V Standby: 400mA Running: 1.5A Peak: 3A Protocol: SSP IF003 ccTalk MDB Interface: USB RS232 Open Collector:Frame Options Standard Frame: Metal Frame Self-aligning Frame Various lighting options Cash drawer options: 500 notes 1000 notes Note sizes:Width: 60 - 85mm Length: 115 - 170mm MCBF: 200,000
5	POS three-in-one card reader	Specify	Reserved space for adding cover plate (model specified) Pax-IM30, please check the 2 bank card POS machine data sheets in the PDF file
6	Barcode scanning	Specify	Image sensor: 1280H800V Field of view: 43° horizontal, 50° diagonal, 28° vertical Read rate: 50ms Decodable symbols: 2D QR code, etc. 1D: UPC/EAN/CODE128/CODE32/CODE39/CODE93/UCC/UPCA, etc. Reading accuracy: 5 mil Reading distance: CODE 39 (12 mil): 20cm-55cm, UPC-A (16 mil): 10cm-60cm, QR code (payment code): 5cm-130cm Contrast: >25% Deflection angle: horizontal ±55°, vertical ±55°, rotation 360° Reading mode: trigger/sensing/continuous Communication interface: Standard: USB, optional: TTL/RS485/RS232 Dimensions: length, width, height (65mm, 64mm, 29mm) Weight: 36g Operating voltage: 4.75V-12.6V Rated power: 0.80W Operating current: 160mA Standby current: 90mA Reading material: screen, paper, metal, PVC film Indicator: two-color indicator
7	Intercom system	Specify	Intercom (to be confirmed later)
8	Printer module	Specify	Printing method: Line thermal printing Print density: 8 dots/mm Printing direction: Paper feed direction Printing speed: 150 mm/sec (max) Paper width: 79.5±0.5 mm Effective printing width: 72 mm Paper handling: Automatic paper cutting Line width: 3.75 mm
9	Coin circulation module	Specify	Five structural parts are reserved for sealing Mixed coin hopper and recycler Requirement: 24V Standby: 200mA Running: 3A Peak: 6.5A Protocol: SSP ccTalk Interface: USB option open collector Coin size: 18 - 28.5mm Thickness: 1.65 - 3.2mm Coin capacity: 1500 (€1) or 1300 (£1) or 800 (£2) Multiple denominations: up to 11 denominations Mixed coin capacity: 200 (€2) + 750 (€1) + 500 (50c) Payout speed: up to 12 coins per second MCBF: 200,000
10	Alarm module	Specify	Security warning system (access control device + control board + sensor + alarm)
11	LED light	Specify	One set of breathing lights, one set of blue lights (with control board)
12	Combined power supply module	Specify	Provide 12V, 24V (110V 50HZ) power for printers and other components
13	Sound effect system	Specify	One on each side, effective output 25W.
14	Cooling system	Specify	4 fans with dust screen
15	Tempered glass panel	Specify	Thickness: 3mm
16	Banknote and coin password safe	Specify	Factory settings: User password "1111", Administrator password "00000000". Unlock: Enter the password you set, the password length should be 4-10 digits (if not set, please use the factory password). Each digit entered will have a sound prompt to indicate validity. After entering the password, press the OK button
17	UPS power supply module	Specify	1000VA, USB interface, with program control
18	Complete machine cabinet (outdoor powder)	Specify	Hall-style structure, with hot steel plate on the outside. Thickness of the whole machine shell: 1.5-2.0mm Appearance: novel, beautiful, and noble; Material: hard and thick, not easy to deform; Internal structure: modular maintenance method, simple and convenient maintenance; wiring is standardized and neat. Contains safe. Universal key for cabinet. (Note outdoor powder)
19	Complete machine cabinet multi-point linkage lock	Mechanical multi-point lock	Multi-point lock for whole cabinet
20	Complete machine accessories	Circuit breakers, socket strips, wires, etc.
21	Communication method	TCP/IP Method

Digital Parking Payment Kiosk with 19.1" LCD Smart ANPR Parking Ticket System 1

Digital Parking Payment Kiosk Features:

19.1" LCD Display: High-resolution screen provides clear instructions and an interactive interface for users, facilitating easy navigation.
Smart ANPR Technology: Automatically recognizes and processes vehicle license plates, enabling quick entry and exit for authorized vehicles.
Multiple Payment Options: Supports various payment methods, including credit/debit cards, mobile wallets, and cash, ensuring flexibility for users.
User-Friendly Interface: Intuitive design guides users through the payment process, reducing wait times and confusion.
Real-Time Transaction Processing: Instantly processes payments and updates parking status, providing accurate information to users and operators.
Durable and Weather-Resistant Design: Built to withstand various environmental conditions, making it suitable for indoor and outdoor installations.
Integrated Receipt Printer: Automatically issues parking tickets or receipts upon successful payment, ensuring users receive documentation.
Remote Monitoring Capabilities: Allows operators to oversee system performance and transaction data from any location for efficient management.
Comprehensive Reporting Tools: Generates detailed reports on financial transactions and usage patterns for better operational insights.
Customizable User Experience: Allows for branding and personalized messages displayed on the kiosk to enhance user engagement.

19.1" LCD Smart ANPR Parking Ticket System

Benefits:

Enhanced User Convenience: Streamlined payment options and intuitive interface improve the overall user experience.
Operational Efficiency: Real-time data processing and remote monitoring enhance resource management and decision-making.
Increased Security: ANPR technology minimizes unauthorized access, ensuring a safer environment for users and their vehicles.

Parking Ticket Payment Machine

Applications:

Public Parking Lots
Shopping Malls and Retail Establishments
Airports and Transit Stations
Event Venues and Stadiums
Corporate Campuses and Institutional Parking Areas

Digital Parking Payment Kiosk with 19.1" LCD Smart ANPR Parking Ticket System 4

Car Plate Recognition System Automatic Pay Station FAQ

Q1: What is the primary function of the Digital Parking Payment Kiosk?
A1: It facilitates parking payments and automates vehicle recognition to streamline access control.

Q2: How does the ANPR technology work?
A2: The ANPR system automatically reads and processes vehicle license plates for quick identification.

Q3: What payment methods does the kiosk support?
A3: The kiosk accepts credit/debit cards, mobile wallets, and cash, offering flexible payment options.

Q4: Is the interface easy to use?
A4: Yes, the 19.1" LCD provides a user-friendly design that guides users through the payment process.

Q5: Can this kiosk operate outdoors?
A5: Yes, it is designed to withstand various outdoor conditions, making it versatile for different environments.

Q6: Does the system print parking tickets?
A6: Yes, it includes an integrated printer that issues receipts or parking tickets upon payment.

Q7: How does real-time transaction processing work?
A7: The system processes payments instantly and updates transaction records and parking availability immediately.

Q8: Can operators monitor the kiosk remotely?
A8: Yes, operators can access performance data and transaction history from remote locations.

Q9: What reporting features are available?
A9: The kiosk provides detailed reports on financial transactions and usage patterns for operational analysis.

Q10: How can I acquire the Digital Parking Payment Kiosk?
A10: You can request a quote through our website or contact our sales team for customized solutions.

The Digital Parking Payment Kiosk with 19.1" LCD Smart ANPR Parking Ticket System is an innovative solution designed to enhance parking management by providing efficient ticket processing and payment options, ensuring a smooth experience for users and operators alike.
