License Plate Recognition Parking System

Parking Ticket Kiosk for Exit Ticket Station Smart Parking Payment System

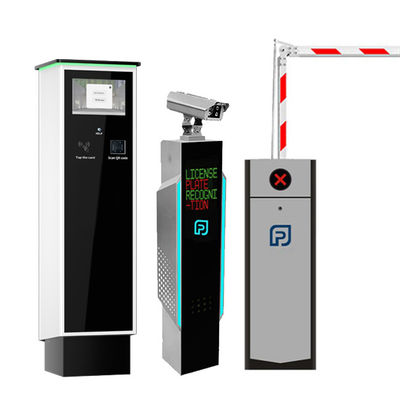

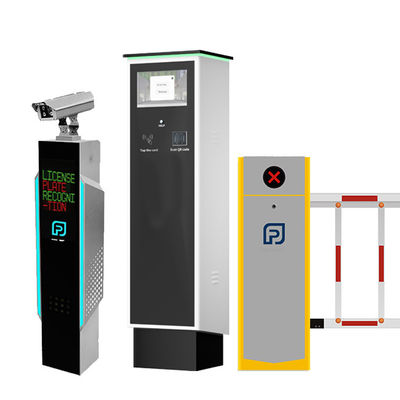

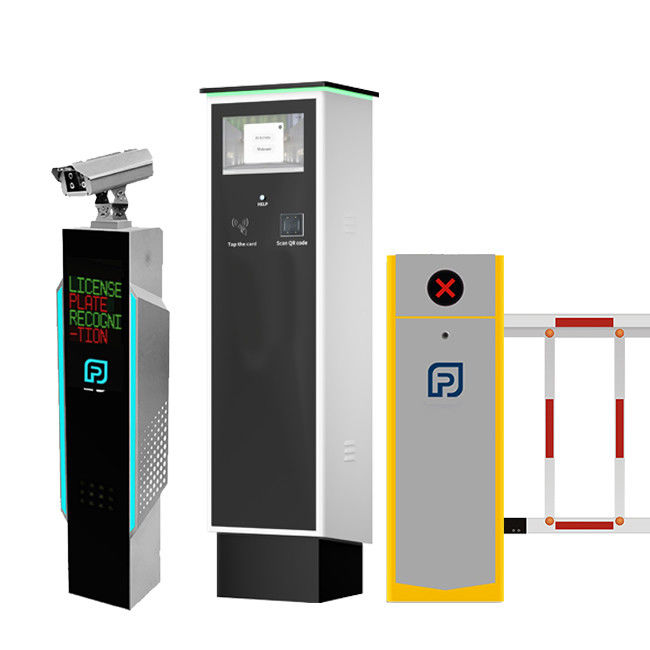

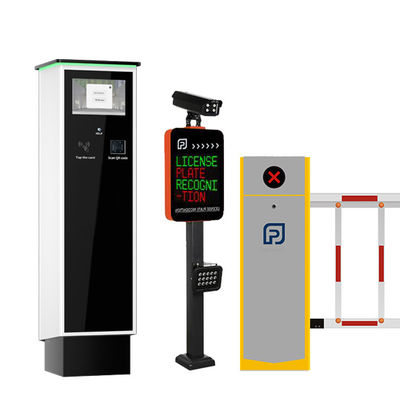

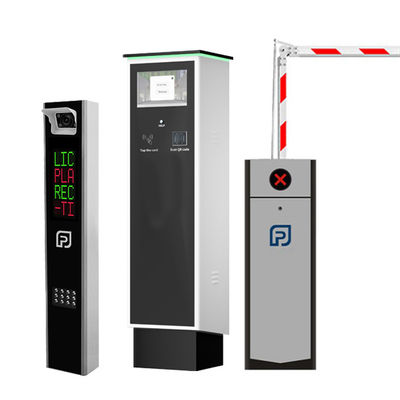

Name: Parking Ticket Kiosk for Exit Ticket Station Smart Parking Payment System
Brand: Shenzhen Realpark Co., Ltd.
SKU: RP-EXIT-TS02-Standard
Price: 491.00 USD
Availability: InStock

Brand Name:	Realpark
Model Number:	RP-EXIT-TS02-Standard
MOQ:	2 sets
Price:	Welcome to contact us!
Delivery Time:	4-6 weeks
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram

Detail Information

Product Description

Detail Information

Place of Origin:

Guangdong, China

Certification:

CE and ISO9001

Type:

Parking Lot Exit Device

Warranty:

1 Year

Modular:

Easy To Maintain Construction

Package Size:

52*42*152cm

Weight:

45kgs

Ticket Printing:

Yes

Part Size:

1376.5mm*373mm*323mm

Qr Code:

Support

Carton Size:

1480*400*445mm

Functionality:

Ticket Machine And Payment Collection

Color:

White

Diplay Size:

10.1-inch

Installation Type:

Free-standing

Display Part:

Colour LCD Screen

Packaging Details:

52*42*152cm/45kgs/Wooden

Supply Ability:

1000 set/Month

Highlight:

Exit Ticket Station Parking Ticket Kiosk

Smart Parking Payment System Ticket Kiosk

Smart Parking Ticket Kiosk

Product Description

Parking Ticket Kiosk for Exit Ticket Station Smart Parking Payment System

The RP-EXIT-TS02 is an advanced parking ticket kiosk designed specifically for exit ticket processing in smart parking solutions. This innovative machine streamlines the vehicle exit process, enhancing user convenience and improving operational efficiency for parking facility operators. With its user-friendly features and robust technology, the RP-EXIT-TS02 is an essential component of modern parking management systems.

Specification
1	Ergonomically designed head for convenient user access.
2	Modular, easy to maintain construction.
3	Unit made from aluminum with double primer and stain less steel, weatherproof.
4	Flexible extension options ensure maximum investment protection.
5	Colour LCD screen displaying straight forward user instructions.
6	Barcode ticket printing for hourly users. Ticket is automatically retracted if the customer backs out of the access lane without taking the ticket.
7	ldentification of pre-books by reading of barcode displayed on Smartphones or printed on paper.
8	Illuminated capacitive-button to request ticket.
9	MIFARE type proximity card reader for passes.
10	Pre-booking and pre-payment.
11	Contract, Season or Monthly parking.
12	Using a wide range of media.
13	Embedded ANPR Camera reliable.
14	Capacitive-button intercom connecting to car park.
15	Counting: Each entrance will be reported to the CC.
16	Autonomous connected to CC which acts as data collection unit and/or as control unit.
17	Ticket issue for hourly users. Ticket is automatically retracted if the customer backs out of the access lane without taking the ticket.
18	IP voice intercom system for communition with the control station.
19	Check datas, time bands, blacklist cards.
20	TCP/IP network communications with the server management and control of associated barrier in exit lane.
21	On/Off line operation.
22	Receives signal from inducti on loops when vehicle is present.
23	Controls manual opening of barrier.
24	Stolen ticket facility.
25	Anti-pass back (for pass card users).
26	Individual security lock.
27	Heating and cooling units with separate thermostats.
28	Materials provide a high degree of reusability.
29	Barcode printer for the printing of parking tickets.
30	Barcode scanner for the reading of all types of parking tickets.
31	Ethernet connection to Realpark System.
32	Capacity of up to 5000 tickets.
33	Thermostacally controlled heater with fan.
34	Power supply with isola on switch.
35	Declarations / Certifications CE, FCC, IC, CNRTLUS.
37	CPU: 4 Core,2GHz
38	Memory: Memory 8GB, support TF,Optional
39	Audio: 1 (line out) Optional
40	Video: HDMI2.0 Type-A 1pcs optional
41	Serial Communication Interface:1pcs RS232
42	Power supply: 120/230V-50/60Hz-500VA(including 400 VA heater).
43	Operating temperature range: -20℃ to +60℃.
44	1.5 mm steel housing (anti-corrosion treated) with durable epoxy powder coat inish.
45	IP54.
46	Easy Access to internal components through front door equipped with a security lock.
49	All components easily accessible.

Components Needed

Kiosk Hardware:
- Touchscreen Display: For user interaction.
- Card Reader: For payment processing (credit/debit cards).
- Printer: To print tickets and receipts.
- Camera: To capture license plates if needed for verification.
- Network Connectivity: Wi-Fi or Ethernet for communication with the central system.
Software:
- Kiosk Application: User interface for payments, ticket generation, and customer support.
- Backend System: To manage parking data, payment processing, and integration with other systems.
Payment Gateway:
- A service for processing payments securely.
Database:
- To store transaction data, ticket information, and user details.
Cloud Platform:
- For centralized data management and processing.

Applications

The RP-EXIT-TS02 is suitable for a wide range of applications, including:

Commercial Parking Facilities: Ideal for shopping malls, office buildings, and entertainment venues, enhancing customer convenience and operational efficiency.
Airports and Transit Hubs: Streamlines the exit process for travelers, reducing congestion and improving the overall experience during busy travel periods.
Municipal Parking Lots: Supports city infrastructure by providing modern and efficient exit solutions for public parking areas.
Residential Complexes: Facilitates easy exit for residents and their guests, simplifying the parking experience in gated communities.

Workflow

User Interaction:
- The user approaches the kiosk and selects “Exit Ticket".
- The kiosk prompts the user to enter their ticket or license plate number.
Ticket Validation:
- The system checks the entered ticket/license plate against the database to ensure it’s valid.
- If valid, it retrieves the parking duration and calculates any fees.
Payment Processing:
- The user is presented with the total amount due.
- They can pay via card using the card reader.
- Ensure the payment gateway securely processes the transaction.
Ticket Generation:
- Once payment is confirmed, the kiosk prints an exit ticket with details (time, amount paid, etc.).
- Optionally, a digital receipt can be sent to the user’s email or phone.
Exit Control:
- The kiosk may interface with a barrier system to allow the vehicle to exit after successful payment.
- If a camera is included, it can capture the vehicle’s license plate for additional verification.

Parking Ticket Kiosk for Exit Ticket Station Smart Parking Payment System 3

Key Features

User-Friendly Interface: Simple and intuitive navigation for users of all ages.
Multiple Payment Options: Support for various payment methods (credit cards, mobile payments).
Real-Time Updates: Sync with the central database to reflect real-time parking availability and transactions.
Security: Ensure all transactions are encrypted and comply with payment card industry standards.

Parking Ticket Kiosk for Exit Ticket Station Smart Parking Payment System 4

Considerations

Location: Ensure kiosks are placed in high-traffic areas for easy access.
Maintenance: Plan for regular maintenance and support for the kiosks.
User Support: Provide clear instructions and customer support options.

Parking Ticket Kiosk for Exit Ticket Station Smart Parking Payment System 5

FAQ

Q1: What is a card ticket machine device?
A card ticket machine device is a device used in parking management systems to issue and validate parking tickets at the entrance and exit of a parking lot.

Q2: What is the purpose of a card ticket machine device?
The purpose of a card ticket machine device is to control vehicle access, record vehicle information, and facilitate parking lot management and payment collection.

Q3: Which parking management systems are compatible with card ticket machine devices?
Card ticket machine devices are compatible with various parking management systems, including cloud-based management systems and local server systems.

Q4: How does a card ticket machine device issue tickets?
Card ticket machine devices can automatically print or dispense pre-encoded tickets, or scan users' electronic tickets for validation.

Q5: How does a card ticket machine device validate tickets?
Card ticket machine devices typically read the barcode or chip information on the ticket and compare it with the database in the system for validation.

Q6: Can a card ticket machine device automatically recognize license plates?
Yes, Realpark card ticket machine devices can automatically recognize license plates and match them with the vehicle information in the system.

Q7: Does a card ticket machine device support temporary parking?
Yes, card ticket machine devices typically support temporary parking functionality, providing corresponding tickets for temporary parking users.

Q8: Can a card ticket machine device integrate with an electronic payment system?
Yes, card ticket machine devices can integrate with an electronic payment system to facilitate cashless payments and automatic fee deductions.

Q9: Does a card ticket machine device support multiple ticket types?
Yes, card ticket machine devices typically support multiple ticket types, such as temporary tickets, monthly passes, and employee cards.

Q10: Can a card ticket machine device be remotely upgraded?
Yes, some card ticket machine devices support remote upgrade functionality, allowing firmware and software upgrades to be performed over the network.

If you have any questions about our products, please feel free to contact our professional service staff. We will reply to you as soon as possible and provide the best technical support. Thank you for your attention and wish you the best.
