License Plate Recognition Parking System

Green/Blue/Customised Light Color Parking Ticket Kiosk LPR QR Code NFC Card Payment

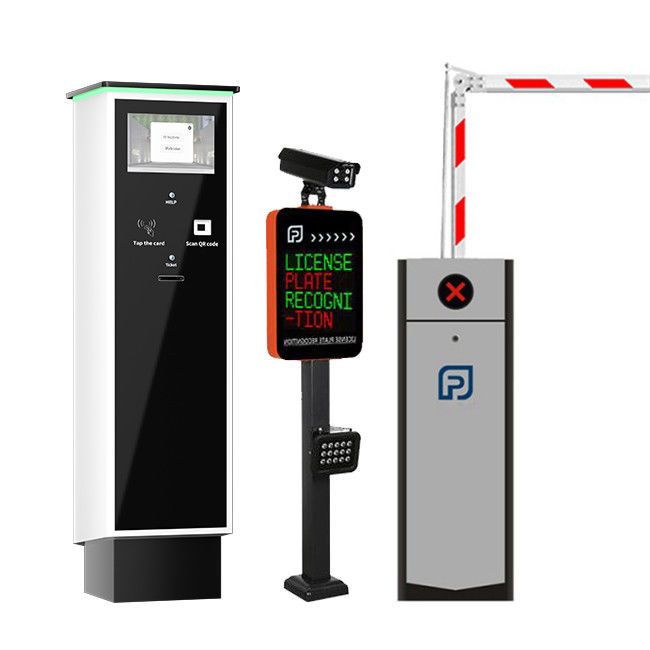

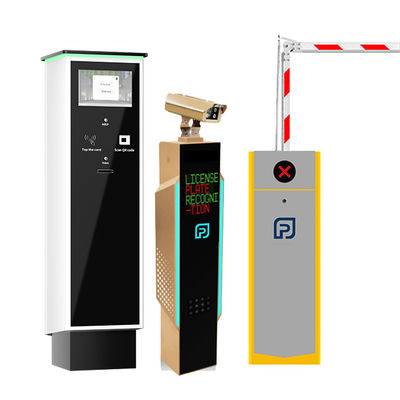

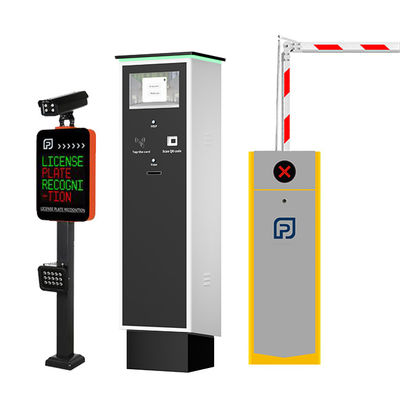

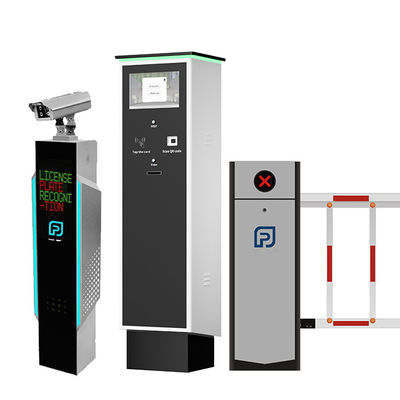

Name: Green/Blue/Customised Light Color Parking Ticket Kiosk LPR QR Code NFC Card Payment
Brand: Shenzhen Realpark Co., Ltd.
SKU: RP-ENTRY-TS01-Standard
Price: 491.00 USD
Availability: InStock

Brand Name:	Realpark
Model Number:	RP-ENTRY-TS01-Standard
MOQ:	1 set
Price:	Welcome to contact us!
Delivery Time:	1-2 weeks
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE and ISO9001

Part Name:

Parking Ticket Kiosk Payment Machine

Brand:

Realpark

Part Number:

RP-ENTRY-TS01-Standard

Working Humidity:

20~70%

Color:

White/Black

Weight:

45kgs

Color Support:

Customised

Light Color Customised:

Green/Blue/Customised

Part Size:

1376.5mm*373mm*323mm

Installation Type:

Floor Standing

Input Voltage:

110-240V

Functionality:

Ticket Machine And Payment Collection

Waterproof Grade:

IP54

Product Type:

Parking Ticket Machine System

Carton Packing Size:

52*42*152cm

Screen Size:

10.1-inch

Check:

Datas, Time Bands, Blacklist Cards

Compatibility:

Integrated Parking Security Systems

Packaging Details:

52*42*152cm/1 set/45kgs/Wooden

Supply Ability:

1000 set/Month

Highlight:

QR Code Parking Ticket Kiosk

LPR Parking Ticket Kiosk

Customised Light Color Parking Ticket Kiosk

Product Description

How such a system could be designed and implemented:

1. Components

LPR Cameras:
- Positioned at the entrance and exit of the parking lot to capture license plates.
- Integrates with the backend system to track vehicle entry and exit times.
Parking Kiosk:
- Equipped with a touchscreen interface for user interaction.
- Supports QR code generation and NFC card reading for payments.
Payment Processing:
- Integration with a payment gateway for processing transactions.
- Options for QR code scanning and NFC card tapping.
Backend Server:
- Manages data from LPR cameras, kiosk transactions, and payment processing.
- Tracks parking duration and calculates fees.

Product Description

Maximize security and efficiency with our Enhanced Ticket Validation Kiosk.

Complete with ticket dispenser, license plate reader, and payment options,

it offers a seamless parking management solution.

Features:

1 • Ergonomically designed head for convenient user access.
2 • Modular, easy to maintain construction.
3 • Unit made from metal with primer and tempered glass, rainproof
4 • Flexible extension options ensure maximum investment protection.
5 • Colour LCD screen displaying straight forward user instructions.
6 • Illuminated capacitive-button to request ticket.
7 • Pre-booking and pre-payment by Barcode scanner ---- Function Optional
8 • Embedded ANPR Camera reliable.
9 • Counting: Each entrance will be reported to the center
10 • TCP/IP network communications with the server management and control of associated barrier in entry lane.
11 • Individual security lock.

Product Details

1. IP Voice Intercom System

IP Voice Intercom System for Communication with the Control Station

2. 10.1 inch LCD Displays

Colour LCD screen displaying straight forward user instructions

3. NFC Card Reader

MIFARE Type proximity card reader for passes ~~~ Optional

4. QR Code Scanner

QR code scanner for Pre-booking or Pre-payment

5. Ticket Button

Illuminated capacitive button to request ticket

6. Ticket Printer

Barcode printer for the printing of parking tickets

Efficiency: Reduces waiting time at entry and exit points.
User-Friendly: Multiple payment options cater to different user preferences.
Automated Tracking: Automatic logging of entry and exit times ensures accurate billing.
Real-Time Updates: Users can receive notifications about parking status and payment confirmations.

User Workflow

Entry:
- Vehicle approaches the parking lot.
- LPR camera captures the license plate, logs the entry time, and opens the gate.
Parking:
- User parks their vehicle and proceeds to the kiosk.
Payment Options:
- QR Code:
  - Kiosk displays a QR code linked to the user's parking session.
  - User scans the QR code with their smartphone to initiate payment via a mobile app or web portal.
- NFC Card:
  - User taps their NFC-enabled card on the kiosk to pay for parking.
Exit:
- Upon exit, the LPR camera reads the vehicle license plate again.
- The system calculates the total parking fee based on the duration and deducts it from the payment method used.
- The gate opens automatically for exit.

1set Smart Parking Management System Software

Considerations

Data Privacy: Ensure compliance with regulations regarding the storage and processing of license plate data.
System Reliability: Implement backup systems for the LPR and payment processing to avoid downtime.
User Education: Provide clear instructions on using QR codes and NFC payments.

This system can greatly enhance the parking experience by making it more seamless and efficient. If you have specific questions or need more details on any aspect, let me know!

FAQ

Q1: What is a card ticket machine device?

A card ticket machine device is a device used in parking management systems to issue and validate parking tickets at the entrance and exit of a parking lot.

Q2: What is the purpose of a card ticket machine device??

The purpose of a card ticket machine device is to control vehicle access, record vehicle information, and facilitate parking lot management and payment collection.

Q3: Which parking management systems are compatible with card ticket machine devices??

Card ticket machine devices are compatible with various parking management systems, including cloud-based management systems and local server systems.

Q4: How does a card ticket machine device issue tickets??

Card ticket machine devices can automatically print or dispense pre-encoded tickets, or scan users' electronic tickets for validation.

Q5: How does a card ticket machine device validate tickets??

Card ticket machine devices typically read the barcode or chip information on the ticket and compare it with the database in the system for validation.

Q6: Can a card ticket machine device automatically recognize license plates?

Yes, Realpark card ticket machine devices can automatically recognize license plates and match them with the vehicle information in the system.

Q7: Does a card ticket machine device support temporary parking?

Yes, card ticket machine devices typically support temporary parking functionality, providing corresponding tickets for temporary parking users.

Q8: Can a card ticket machine device integrate with an electronic payment system?

Yes, card ticket machine devices can integrate with an electronic payment system to facilitate cashless payments and automatic fee deductions.

Q9: Does a card ticket machine device support multiple ticket types

Yes, card ticket machine devices typically support multiple ticket types, such as temporary tickets, monthly passes, and employee cards.

Q10: Can a card ticket machine device be remotely upgraded?

Yes, some card ticket machine devices support remote upgrade functionality, allowing firmware and software upgrades to be performed over the network.

If you have any questions about our products, please feel free to contact our professional service staff. We will reply to you as soon as possible and provide the best technical support (Email: reapark@anpr-solution.com). Thank you for your attention and wish you the best.
