License Plate Recognition Parking System
Created with Pixso. High Speed Parking Barrier Gate with Straight Arm Access Control Parking Solution 50Hz/60Hz

High Speed Parking Barrier Gate with Straight Arm Access Control Parking Solution 50Hz/60Hz

Brand Name: Realpark
Model Number: RPH08-PLUS-SERVO
MOQ: 1 set
Price: Welcome to contact us!
Delivery Time: 1-2 weeks
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Detail Information
Place of Origin:
China
Certification:
CE and ISO9001
Part Name:
Parking Barrier Gate
Part Number:
RPH08-PLUS-SERVO
Motor And Voltage:
24 VDC Servo Motor
Supply Voltage:
AC220V±10%, 50Hz/60Hz
Speed:
0~0.9s, 0~3Meters
Warranty:
1 Year
Motor Rated Power:
50W,Max 100W
Type:
Straight Barrier Road Gate
Power:
80W
Running Speed:
0.9s
Mtbf:
5 Million
Package Size:
45*45*110cm/45kgs
Packaging Details:
98*38*41cm/36kgs/set/Carton, 103*43*44cm/43kgs/set/Wooden
Supply Ability:
1000sets/Month
Highlight:

50Hz/60Hz Parking Barrier Gate

,

Access Control Parking Barrier Gate

,

High Speed Parking Barrier Gate

Product Description

High Speed Parking Barrier Gate with Straight Arm Access Control Parking Solution



The High-Speed Parking Barrier Gate is an advanced access control solution designed to streamline vehicle entry and exit in parking facilities. Featuring a straight arm configuration, this barrier gate ensures quick and efficient access while maintaining security and control.



Servo High Speed Barrier Gate

                                                                             Part No.: RPH08-PLUS-Servo

RPH08-PLUS DC Servo Barrier Gate
Supply voltage AC220V±10%50Hz
Card reading signal: switch value
Motor: DC servo motor 150W
Input voltage: 24V
Rated/peak current: 10A/30A
Human-machine interface: 4-digit LED, 4-digit button
Hardware protection: over-current protection,
over-voltage protection,
short-circuit protection
Input signal: gate opening, closing, stop,
ground sensing, anti-smashing
Output signal: open position, closed position dry contact
Product size: 340*308*954mm





High Speed Parking Barrier Gate with Straight Arm Access Control Parking Solution 50Hz/60Hz 0



                                                                             Key Features

1. High-Speed Operation

  • Functionality: Engineered for rapid opening and closing, significantly reducing wait times for vehicles.
  • Benefit: Improves traffic flow, making it ideal for busy parking facilities.

2. Straight Arm Design

  • Functionality: The straight arm configuration is perfect for standard parking applications, providing clear access for vehicles.
  • Benefit: Ensures a straightforward and unobstructed path for vehicle entry and exit.

3. Durable Construction

  • Material: Built with robust materials to withstand harsh weather conditions and potential impacts.
  • Benefit: Guarantees longevity and reliability, suitable for both indoor and outdoor environments.

4. Integrated Access Control

  • Functionality: Compatible with various access control systems, including RFID readers, keypads, and LPR technology.
  • Benefit: Provides secure and automated entry, minimizing the need for manual checks.

5. Safety Features

  • Obstacle Detection: Equipped with sensors to detect obstacles in the barrier's path, preventing accidents.
  • Emergency Manual Override: Allows for manual operation during power outages or emergencies.

6. Remote Monitoring and Management

  • Functionality: Enables operators to monitor and control the barrier gate from a centralized system.
  • Benefit: Enhances operational efficiency and allows for quick troubleshooting and maintenance.

High Speed Parking Barrier Gate with Straight Arm Access Control Parking Solution 50Hz/60Hz 1

Benefits

  • Enhanced Security: Provides controlled access to parking areas, reducing the risk of unauthorized entry.
  • Improved User Experience: Fast operation and clear access paths create a smoother experience for users.
  • Customizable Solutions: Flexible integration with various access control systems allows for tailored solutions to meet specific needs.

High Speed Parking Barrier Gate with Straight Arm Access Control Parking Solution 50Hz/60Hz 2


                                                                              Applications
1. Commercial Parking Lots: Ideal for managing access in busy commercial parking facilities, enhancing security while facilitating smooth vehicle flow.
2. Residential Complexes: Provides secure access control for gated communities, ensuring only authorized vehicles can enter.
3. Toll Booths: Efficiently manages toll collection points, speeding up transaction times and reducing congestion.



                                                                               FAQ

Q1: What are Car parking barriers?
Car Park Barriers are used to control access at the entrance to car parking, service yards and restricted areas. To choose the best option for your facility just consider a few factors including the space available, how often access is required and the mix of traffic in the area.

Q2: What are the considerations when selecting a car parking barrier?
When selecting a car parking barrier, it is recommended that you consider the following:
• Has the car parking barrier been full-scale crash tested?
• What is the area and quantity of the place used ?
(provide photos of the construction site, and we can provide reasonable road gate scheme drawings)
• Environmental conditions of use (Low temperature or high temperature, etc.)
• DC brushless motor or AC brushless motor?
• What type of barrier gate?
• What type of barrier pole?
• What color do you need?

Q3: How does the car parking barrier system works?
In the car park barrier system the barriers are installed at the entry and exit points of the car park.
These barriers gives control and a more secure area where people can be assured that their car is safe.

Q4: Why do you need a parking lot barrier?
It is used to manage the entry and exit specifications of the parking lot.

Q5: How many types of Realpark car park barriers arms?
There are 90° Folding Arm, 180° Folding Arm, Single Fence Arm and 2 Fence Arm.
The folding arm blocks both people and cars. The fence can only block cars.

Q6: How many colors of Realpark car parking barriers?
There are yellow, black, red, gray, brown for option.

Q7: Why choose Realpark Car parking barriers?
Parking barrier adopts die-casting aluminium alloy motor and extraordinary structural design, it offers not only a long-life cycle,
high reliability and quality,but also reduces the difficulty of equipment maintenance.
It is an ideal choice for vehicle entrance control management.

Function:
• High-performance swing barrier
• Modularized structure design
• Fast opening speed and low noise
• SUS304 stainless steel
• Unti-bumping
• Swing-out Boom Holder
• Clutch Key
• Exactitude Aluminum Alloydie-casting Motor

Q8: How to get sample?
We must receive your sample payment and shipping before we can send the samples to you.
After the customer confirms the order, we will reduce the sample cost.
However, if you are our frequent customer, we can send the sample to you and then deduct it from your account in the next transaction.

Q9: What services can we support?
• Factory Price Direct Selling
• OEM/ODM
• Fast Delivery (Samples 3-7 days, more QTY order priority production)

Q10: What payment method we support?
• Alibaba Trade Assurance Order, T/T Transfer, Western Union, MoneyGram, Credit Card, L/C
Standard products: 30% deposit, 70% balance payment before shipment.
Customized product40% deposit, 60% balance payment before shipment.
Contract amount more than USD$15000: 50% deposit, 50% balance payment before shipment.

Q11: How to ship?
By air or by sea, quantity over 10 sets better to choose by sea to reduce cost.

Any other more questions, welcome to send inquiry or contact our customer service online.



Good price  online

Products Details

Created with Pixso. Home Created with Pixso. Products Created with Pixso.
License Plate Recognition Parking System
Created with Pixso. High Speed Parking Barrier Gate with Straight Arm Access Control Parking Solution 50Hz/60Hz

High Speed Parking Barrier Gate with Straight Arm Access Control Parking Solution 50Hz/60Hz

Brand Name: Realpark
Model Number: RPH08-PLUS-SERVO
MOQ: 1 set
Price: Welcome to contact us!
Packaging Details: 98*38*41cm/36kgs/set/Carton, 103*43*44cm/43kgs/set/Wooden
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Detail Information
Place of Origin:
China
Brand Name:
Realpark
Certification:
CE and ISO9001
Model Number:
RPH08-PLUS-SERVO
Part Name:
Parking Barrier Gate
Part Number:
RPH08-PLUS-SERVO
Motor And Voltage:
24 VDC Servo Motor
Supply Voltage:
AC220V±10%, 50Hz/60Hz
Speed:
0~0.9s, 0~3Meters
Warranty:
1 Year
Motor Rated Power:
50W,Max 100W
Type:
Straight Barrier Road Gate
Power:
80W
Running Speed:
0.9s
Mtbf:
5 Million
Package Size:
45*45*110cm/45kgs
Minimum Order Quantity:
1 set
Price:
Welcome to contact us!
Packaging Details:
98*38*41cm/36kgs/set/Carton, 103*43*44cm/43kgs/set/Wooden
Delivery Time:
1-2 weeks
Payment Terms:
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:
1000sets/Month
Highlight:

50Hz/60Hz Parking Barrier Gate

,

Access Control Parking Barrier Gate

,

High Speed Parking Barrier Gate

Product Description

High Speed Parking Barrier Gate with Straight Arm Access Control Parking Solution



The High-Speed Parking Barrier Gate is an advanced access control solution designed to streamline vehicle entry and exit in parking facilities. Featuring a straight arm configuration, this barrier gate ensures quick and efficient access while maintaining security and control.



Servo High Speed Barrier Gate

                                                                             Part No.: RPH08-PLUS-Servo

RPH08-PLUS DC Servo Barrier Gate
Supply voltage AC220V±10%50Hz
Card reading signal: switch value
Motor: DC servo motor 150W
Input voltage: 24V
Rated/peak current: 10A/30A
Human-machine interface: 4-digit LED, 4-digit button
Hardware protection: over-current protection,
over-voltage protection,
short-circuit protection
Input signal: gate opening, closing, stop,
ground sensing, anti-smashing
Output signal: open position, closed position dry contact
Product size: 340*308*954mm





High Speed Parking Barrier Gate with Straight Arm Access Control Parking Solution 50Hz/60Hz 0



                                                                             Key Features

1. High-Speed Operation

  • Functionality: Engineered for rapid opening and closing, significantly reducing wait times for vehicles.
  • Benefit: Improves traffic flow, making it ideal for busy parking facilities.

2. Straight Arm Design

  • Functionality: The straight arm configuration is perfect for standard parking applications, providing clear access for vehicles.
  • Benefit: Ensures a straightforward and unobstructed path for vehicle entry and exit.

3. Durable Construction

  • Material: Built with robust materials to withstand harsh weather conditions and potential impacts.
  • Benefit: Guarantees longevity and reliability, suitable for both indoor and outdoor environments.

4. Integrated Access Control

  • Functionality: Compatible with various access control systems, including RFID readers, keypads, and LPR technology.
  • Benefit: Provides secure and automated entry, minimizing the need for manual checks.

5. Safety Features

  • Obstacle Detection: Equipped with sensors to detect obstacles in the barrier's path, preventing accidents.
  • Emergency Manual Override: Allows for manual operation during power outages or emergencies.

6. Remote Monitoring and Management

  • Functionality: Enables operators to monitor and control the barrier gate from a centralized system.
  • Benefit: Enhances operational efficiency and allows for quick troubleshooting and maintenance.

High Speed Parking Barrier Gate with Straight Arm Access Control Parking Solution 50Hz/60Hz 1

Benefits

  • Enhanced Security: Provides controlled access to parking areas, reducing the risk of unauthorized entry.
  • Improved User Experience: Fast operation and clear access paths create a smoother experience for users.
  • Customizable Solutions: Flexible integration with various access control systems allows for tailored solutions to meet specific needs.

High Speed Parking Barrier Gate with Straight Arm Access Control Parking Solution 50Hz/60Hz 2


                                                                              Applications
1. Commercial Parking Lots: Ideal for managing access in busy commercial parking facilities, enhancing security while facilitating smooth vehicle flow.
2. Residential Complexes: Provides secure access control for gated communities, ensuring only authorized vehicles can enter.
3. Toll Booths: Efficiently manages toll collection points, speeding up transaction times and reducing congestion.



                                                                               FAQ

Q1: What are Car parking barriers?
Car Park Barriers are used to control access at the entrance to car parking, service yards and restricted areas. To choose the best option for your facility just consider a few factors including the space available, how often access is required and the mix of traffic in the area.

Q2: What are the considerations when selecting a car parking barrier?
When selecting a car parking barrier, it is recommended that you consider the following:
• Has the car parking barrier been full-scale crash tested?
• What is the area and quantity of the place used ?
(provide photos of the construction site, and we can provide reasonable road gate scheme drawings)
• Environmental conditions of use (Low temperature or high temperature, etc.)
• DC brushless motor or AC brushless motor?
• What type of barrier gate?
• What type of barrier pole?
• What color do you need?

Q3: How does the car parking barrier system works?
In the car park barrier system the barriers are installed at the entry and exit points of the car park.
These barriers gives control and a more secure area where people can be assured that their car is safe.

Q4: Why do you need a parking lot barrier?
It is used to manage the entry and exit specifications of the parking lot.

Q5: How many types of Realpark car park barriers arms?
There are 90° Folding Arm, 180° Folding Arm, Single Fence Arm and 2 Fence Arm.
The folding arm blocks both people and cars. The fence can only block cars.

Q6: How many colors of Realpark car parking barriers?
There are yellow, black, red, gray, brown for option.

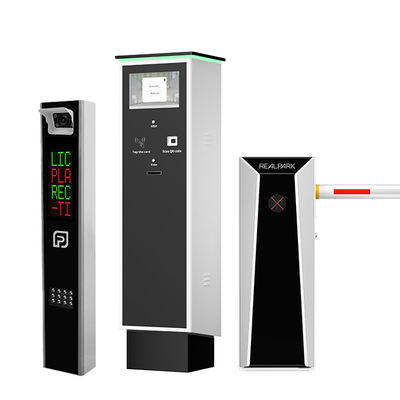

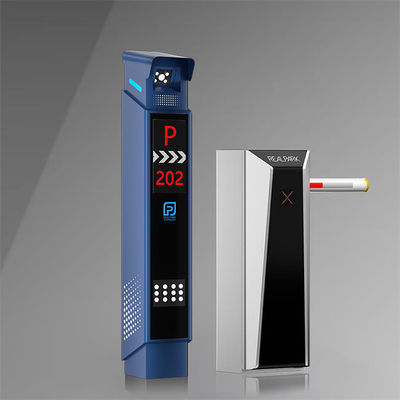

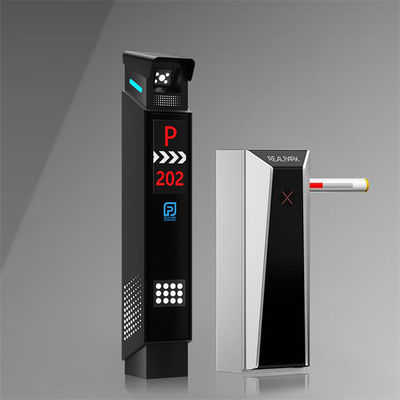

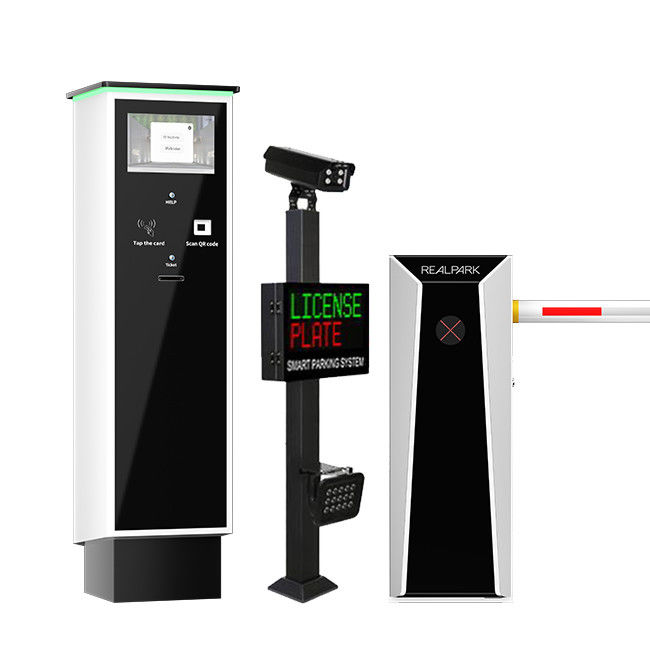

Q7: Why choose Realpark Car parking barriers?
Parking barrier adopts die-casting aluminium alloy motor and extraordinary structural design, it offers not only a long-life cycle,
high reliability and quality,but also reduces the difficulty of equipment maintenance.
It is an ideal choice for vehicle entrance control management.

Function:
• High-performance swing barrier
• Modularized structure design
• Fast opening speed and low noise
• SUS304 stainless steel
• Unti-bumping
• Swing-out Boom Holder
• Clutch Key
• Exactitude Aluminum Alloydie-casting Motor

Q8: How to get sample?
We must receive your sample payment and shipping before we can send the samples to you.
After the customer confirms the order, we will reduce the sample cost.
However, if you are our frequent customer, we can send the sample to you and then deduct it from your account in the next transaction.

Q9: What services can we support?
• Factory Price Direct Selling
• OEM/ODM
• Fast Delivery (Samples 3-7 days, more QTY order priority production)

Q10: What payment method we support?
• Alibaba Trade Assurance Order, T/T Transfer, Western Union, MoneyGram, Credit Card, L/C
Standard products: 30% deposit, 70% balance payment before shipment.
Customized product40% deposit, 60% balance payment before shipment.
Contract amount more than USD$15000: 50% deposit, 50% balance payment before shipment.

Q11: How to ship?
By air or by sea, quantity over 10 sets better to choose by sea to reduce cost.

Any other more questions, welcome to send inquiry or contact our customer service online.
