License Plate Recognition Parking System
Created with Pixso. LPR Camera Vehicle Entry System With Straight / Folding / Fence Barrier

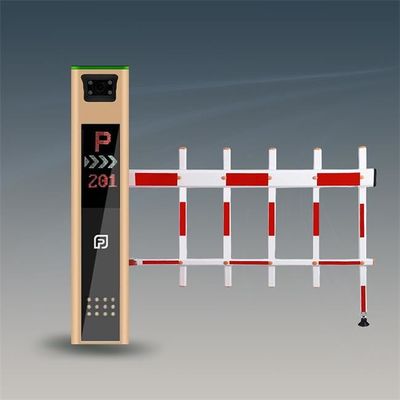

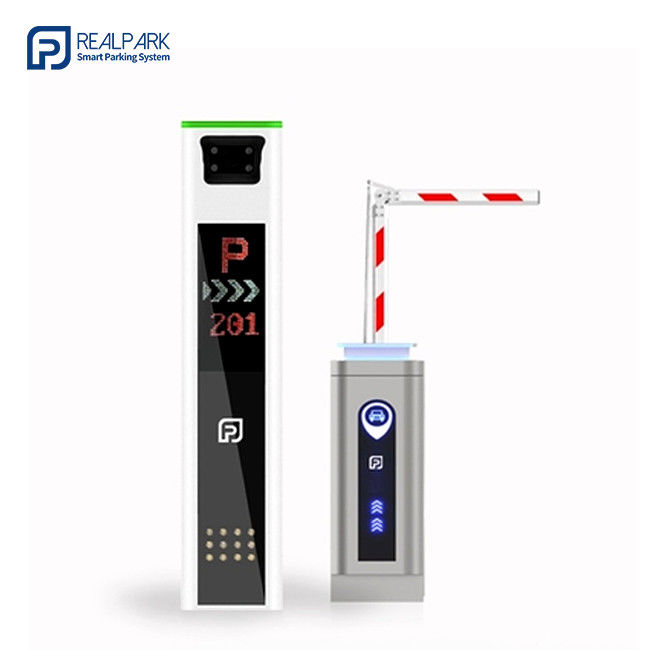

LPR Camera Vehicle Entry System With Straight / Folding / Fence Barrier

Brand Name: Realpark
Model Number: RPL-YY04
MOQ: 1 set
Price: Welcome to contact us!
Delivery Time: 2-3 weeks
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Detail Information
Place of Origin:
Guangdong, China
Certification:
CE and ISO9001
Part Number:
RPL-YY04
Camera Lens:
6mm
LED Screen Size:
L192cm*H384cm
Arm Support::
Straight/Fence/Folding
Camera:
5mp LPR Camera
Part Size::
285x253x1563mm
Net Weight::
≈50kgs
Lens Type::
Fixed
Packaging Details:
285*253*1563mm/50kgs/Carton
Supply Ability:
1000 set/Month
Highlight:

LPR Camera Vehicle Entry System

,

Fence Barrier Vehicle Entry System

,

LPR Vehicle Entry System

Product Description

Vehicle Entry System With Straight/Folding/Fence Boom Gate And 5mp LPR Camera


The Vehicle Entry System featuring a Straight/Folding/Fence Boom Gate along with a 5MP LPR (License Plate Recognition) Camera is an advanced solution designed to optimize vehicle access control and improve operational efficiency. This integrated system merges high-resolution imaging technology with flexible boom gate options, ensuring secure and efficient entry and exit management in various settings.



Pro33-9



Specification
Part Number RPL-YY04
LED Screen Size L192cm*H384cm
(P3 full-color LED eight-line display)
Resolution Two Pieces of Single LED module 64*64 Dot-matrix
Car License Plate Camera Picture Output 2 Million/3 Million/4 Million Mixel JPEG
Minimum illumination 0.01Lux
Aperture Fixed Aperture
Focal Length 6mm
Storage Interface Support SD2.0 Standard
Micro SD(TF) Card, Max 32G
Wide Dynamic Range ≥100dB
X04 Main Board Voice Remind Temporary Cars and Vip Cars,
Welcome to you, Have a nice day, etc.
Show Support Multi-LED Module
Barrier Gate Voltage AC220V±10%,50Hz/60Hz
Motor Type The Sixth Generation Brushless DC Motor
Working Temperature -20°C~ +70°C
Ambient Humidity 5% to 95%
Fixed Direction Can be interchanged left and right
(Need to add accessories)
Pole Length ≤ 6 meters straight/curved pole
≤ 5.5 meters two columns
≤ 4.5 meters three columns
Input Signal Open, close, stop, ground sense, anti-smashing
Motor Power 100W
Remote Control Frequency 430Mhz
General Parameters Protection Class IP42,Certain Dustproof and Waterproof
Operating Temperature -10℃~60 (Optional Thermostat)
Working Humidity 5%~85%
Power Consumption 160W MAX
Equipment Size 285*253*1563mm(Width*Thickness*Height)
Weight ≈50kg
Pro33-8


Key Features:

  1. 5MP LPR Camera:

    • High-definition camera that captures and processes license plate images with exceptional clarity, enabling accurate recognition in real time.
  2. Boom Gate Options:

    • Available in straight, folding, or fence arm configurations to accommodate different entry scenarios and site requirements, providing versatility in access control.
  3. Automated Access Management:

    • The system automatically opens the boom gate for recognized vehicles, significantly reducing wait times and streamlining traffic flow.
  4. Live Monitoring Capabilities:

    • Offers real-time visibility into vehicle access events, allowing operators to oversee traffic and quickly identify unauthorized entries.
  5. Intuitive Operator Interface:

    • User-friendly dashboard for managing access permissions, viewing live camera feeds, and retrieving historical access data with ease.
  6. Seamless Integration:

    • Compatible with existing security infrastructure, including CCTV systems, alarm setups, and parking management applications, for enhanced operational synergy.
  7. Robust and Weatherproof Design:

    • Constructed from durable materials to withstand various environmental conditions, ensuring dependable performance for outdoor installations.
  8. Data Logging and Reporting:

    • Maintains detailed records of vehicle access, enabling comprehensive reporting and analysis of usage patterns for better resource management.
  9. Manual Override Functionality:

    • Equipped with a manual operation feature to control the boom gate in emergencies or power outages, ensuring safety and accessibility.
  10. Customizable Configuration:

    • Administrators can tailor access settings, manage user profiles, and adjust operational parameters to fit specific needs.

Pro33-12 (2)



Benefits:

  • Heightened Security: The combination of 5MP LPR technology and automated boom gates effectively prevents unauthorized vehicle access, enhancing overall site security.

  • Operational Efficiency: Automation of entry and exit processes minimizes congestion and improves traffic management in various environments.

  • Comprehensive Data Analysis: The system logs and analyzes vehicle movement data, providing valuable insights for informed decision-making and operational enhancements.

  • User-Friendly Experience: Quick and automated access for authorized vehicles leads to improved user satisfaction and streamlined operations.

  • Diverse Applications: Ideal for a variety of environments, including corporate facilities, residential complexes, airports, and event locations.

Pro33-13
Applications:
  • Corporate Campuses: Manage employee and visitor access to secure areas.
  • Parking Facilities: Streamline entry and exit processes in public and private parking lots.
  • Residential Communities: Control access to gated communities or apartment complexes.
  • Event Venues: Facilitate efficient vehicle entry during large events or gatherings.

The Vehicle Recognition System with Straight/Fence Arm Barrier Gate and LPR Camera provides a robust solution for modern vehicle access management, combining security, efficiency, and convenience in a single package.


Pro33-17




FAQs for Vehicle Entry System Machine


Q1: What is a Vehicle Entry System with a Boom Gate?
A Vehicle Entry System with a Boom Gate is a security solution that controls vehicle access to specific areas using a boom gate combined with a license plate recognition (LPR) camera to identify and authenticate vehicles.



Q2: How does the 5MP LPR camera work?
The 5MP LPR camera captures high-resolution images of vehicle license plates, processes the images, and extracts the plate data for real-time recognition and access control.



Q3: What are the different boom gate options available?
The system offers straight, folding, and fence boom gates, allowing you to choose the most suitable design based on your specific site requirements and space constraints.



Q4: Can the system handle high traffic volumes?
Yes, the system is designed to manage high volumes of vehicle traffic efficiently, minimizing wait times through automated recognition and access processes.



Q5: Is the system suitable for outdoor use?
Absolutely. The boom gate and LPR camera are built with durable, weather-resistant materials, making them ideal for outdoor installations in various environmental conditions.



Q6: How does the system ensure security against unauthorized access?
The combination of LPR technology and automated boom gates prevents unauthorized vehicles from entering restricted areas by allowing access only to recognized license plates.



Q7: Can the vehicle entry system be integrated with other security systems?
Yes, it can seamlessly integrate with existing security infrastructures, such as CCTV cameras, alarm systems, and access control software, enhancing overall security management.



Q8: How is data from the LPR camera stored and managed?
Data can be stored locally on a server or in the cloud, depending on your setup. The system maintains detailed logs of vehicle access for reporting and analysis.



Q9: What happens if the LPR camera fails to recognize a license plate?
If recognition fails, the system can be configured to allow manual entry or alternative authentication methods, ensuring that authorized users can still gain access.



Q10: Is there an emergency override feature for the boom gate?
Yes, the system includes a manual override option that allows the boom gate to be operated manually in case of emergencies or power outages, ensuring safety and accessibility.
