License Plate Recognition Parking System

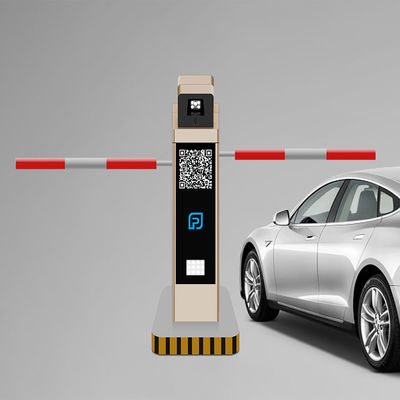

Ticketless LPR Parking System Controller With 3m Straight Arm Barrier

Name: Ticketless LPR Parking System Controller With 3m Straight Arm Barrier
Brand: Shenzhen Realpark Co., Ltd.
SKU: RPL-XY01-LED
Price: 491.00 USD
Availability: InStock

Brand Name:	Realpark
Model Number:	RPL-XY01-LED
MOQ:	1 set
Price:	Welcome to contact us!
Delivery Time:	2-3 weeks
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram

Detail Information

Product Description

Detail Information

Place of Origin:

Guangdong, China

Certification:

CE and ISO9001

Part Number:

RPL-XY01-LED

Minimum Illumination:

0.01Lux

LPR Sensor:

1/3" CMOS Image Sensor

Camera Built-in Light:

4 High-power LED White Lights

Working Temperature:

-10℃～60℃(Optional Thermostat)

Weight:

≈70kg

Packaging Details:

45*35*157cm/1set/70kgs

Supply Ability:

1000 set/Month

Highlight:

Ticketless LPR Parking System

3m Barrier LPR Parking System

vehicle license plate recognition system

Product Description

Ticketless Parking Controller With 3m Straight Arm Barrier For LPR Parking System

The RPL-XY01-LED is an advanced ticketless parking controller designed to streamline access and enhance security in parking facilities. Utilizing a 3-meter straight arm barrier and License Plate Recognition (LPR) technology, this system offers a modern solution for managing vehicle entry and exit without the need for physical tickets.

Product Specifications:

Products Model		RPL-XY01-LED
ALPR Camera	CPU	Specialized license plate recognition chip
	Sensor	1/3" CMOS Image Sensor
	Minimum illumination	0.01Lux
	Lens	6mm fixed focus lens
	Built-in light	4 high-power LED white lights
	Plate recognition accuracy	≥98%
	Triggering mode	Video trigger, coil trigger
	Image output	1080P(1920x1080),960P(1280x960), 720P(1280x720),D1(704x576),CIF(352x288)
	Picture output	5 mega-pixel JPEG
	Video compression format	H.264 High Profile , Main Profile, Baseline , MJPEG
	Network interface	10/100,RJ45
	IO	2 input & 2 output 3.5mm connecting terminals
	Serial interface	2 x RS485
	Audio Interface	1 input & 1 output
	SD Card	Support SD2.0 standard Micro SD(TF) card with a maximum capacity of 32G
	Power Supply	AC220V
	Power Consumption	≤7.5W
	Working Temperature	-25℃~+70℃
Main Component Parameters
LED Screen X04 Control Board	LED Screen Size	260mm*260mm ( P4 LED 4 lines )
	LED Screen Resolution	LED module: 6432 Advertisement Screen: Video Size 260mm440mm ( Display size 230mm*410mm )
	Voice	Temporary vehicles can be broadcast, the monthly car is welcome, and the journey is safe and other vehicle voice reminders
	Display	Support a variety of LED modules
	Chip	ARM Cortex-M Series RISC core core chip
	Screen Control	Supports standard horizontal and vertical screens, which can be switched by pressing the button;
	Display Control	Supports three-color, two-color, and multiple color displays (hardware and software vary);
	ALPR Camera Type	Connect with mainstream cameras such as A/B/C and Dahua; 4. Provide SDK development kit and free technical guidance; 5. Provide a full range of docking solutions to support the Internet of Things, car wash systems, license plate recognition systems, and platform payment system debugging and matching. The connection supports offline use, encryption, and personalized development; 6. Supports two-line and four-line display screens, equipped with traffic light interface; 7. Built-in voice broadcast system, the real voice is loud and clear; 8. Universal voice can be expanded to meet personalized needs.
	Secondary Development	Provide SDK development kit and free technical guidance; 5. Provide a full range of docking solutions to support the Internet of Things, car wash systems, license plate recognition systems, and platform payment system debugging and matching. The connection supports offline use, encryption, and personalized development; 6. Supports two-line and four-line display screens, equipped with traffic light interface; 7. Built-in voice broadcast system, the real voice is loud and clear; 8. Universal voice can be expanded to meet personalized needs.
	Full Integrated Solution	Provide a full range of docking solutions to support the Internet of Things, car wash systems, license plate recognition systems, and platform payment system debugging and matching. The connection supports offline use, encryption, and personalized development;
	Screen Type	Supports two-line and four-line display screens, equipped with traffic light interface;
	Voice System	Built-in voice broadcast system, the real voice is loud and clear;
	Customization	Universal voice can be expanded to meet personalized needs.
	Power interface	12V mode, input 5A, output can be equipped with 2 modules, current >3.5A, built-in anti-reverse connection function
General Parameters	Protection class	IP42,Dustproof and Waterproof Function
	Power Supply	Meanwell LPS-150-12(12V 12.5A),1599730mm (LWH)
	Working Temperature	‘-10℃～60℃(Optional thermostat)
	Working humidity	5%-85%
	Power consumption	150W Max, AC 220V±10％/50Hz
	Device size	4302901460mm(WidthThicknessHeight)
	Net Weight	≈37kgs(43.532.5151cm, Carton Package
	Gross Weight	≈38kgs(4535157cm, Wooden Package)

DC Servo High Speed Barrier Gate
Supply voltage	AC220V±10%50Hz
Card reading signal:	switch value
Motor:	DC servo motor 150W
Input voltage:	24V
Rated/peak current:	10A/30A
Human-machine interface:	4-digit LED, 4-digit button
Hardware protection:	over-current protection, over-voltage protection, short-circuit protection
Input signal:	gate opening, closing, stop, ground sensing, anti-smashing
Output signal:	open position, closed position dry contact
Product size:	340308954mm

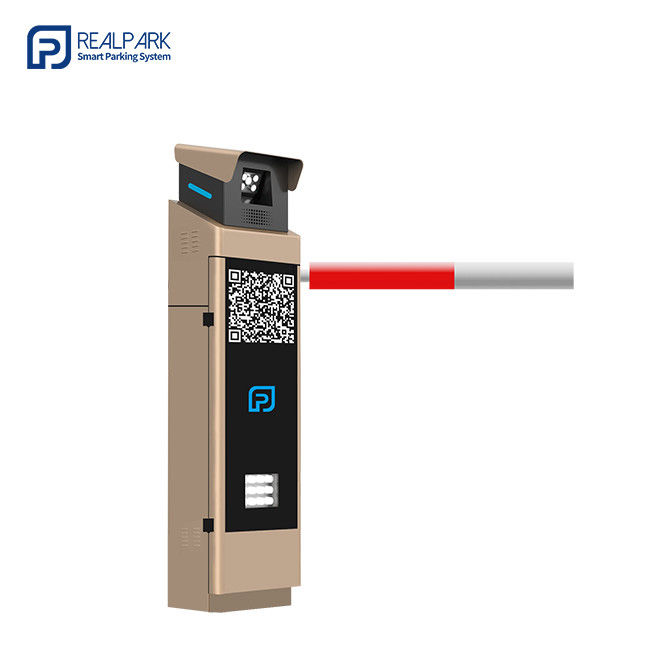

Ticketless LPR Parking System Controller With 3m Straight Arm Barrier 0

Technology Is The Core Of Our Hardware And Software,

And The Appearance Is Designed Independently

The main material is high-strength carbon steel. The front of the fuselage is laminated with a whole piece of tempered glass. The fuselage adopts geometric structure and sharp design. The combination of silver, gold and black brings you a more shocking vision.

RPL-XY01-LED is positioned as a professional barrier gate integrated ticketless parking controller, integrating barrier gate, LPR algorithm, high-definition camera, fill light, 160mm*320mm (P4.75 LED 2 lines) LED display, single LED display in the One. Module 64*32 dot matrix resolution. The AI license plate recognition algorithm independently developed by Realpark has increased the recognition accuracy to 99%. This product can be used in conjunction with video intercom terminals and management platforms, and supports multiple extended functions, such as front-end voice interaction, advertisement push, etc. Most importantly, it can support unattended parking applications, online payment and remote management and maintenance. RPL-XY01 can be used in large commercial buildings, shopping malls, government agencies, residential areas, industrial parks, etc.

Ticketless LPR Parking System Controller With 3m Straight Arm Barrier 1

Perfectly Compatible with Complex Scenes
Dual license plate signal capture via video stream and loop detector/radar for 99% license plate capture rate. The product supports dual-channel camera collaborative recognition to meet the complex application scenarios of mixed driving of cars and motorcycles. At the same time, indoor and outdoor, winter rainy season is also completely no problem.

Powerful Hardware Platform, More Robust Performance
Built-in self-developed unique license plate recognition algorithm and high-end technology image processing unit from different countries around the world. At the same time, powerful application processing capabilities and deep learning capabilities for license plate recognition make the technology more powerful, and the product uses an industrial-grade quad-core high-end hardware platform .

Ticketless LPR Parking System Controller With 3m Straight Arm Barrier 3

It is perfectly compatible with different installation environments and usage scenarios.

This device can be connected to auxiliary identification cameras, information display screens, visual intercom terminals, and environmental monitoring cameras to realize more applications in parking lots, such as real-time monitoring, audio and video intercom, fast payment, emergency handling and other functions. Compared with the traditional parking management system, the management cost is lower, the application is richer, and the efficiency is higher.

Ticketless LPR Parking System Controller With 3m Straight Arm Barrier 4

It is perfectly compatible with different installation environments and usage scenarios.

FAQs for Ticketless Parking Controller: RPL-XY01-LED

What is the RPL-XY01-LED?
- The RPL-XY01-LED is a ticketless parking controller that utilizes License Plate Recognition (LPR) technology and features a 3-meter straight arm barrier for efficient vehicle access management.

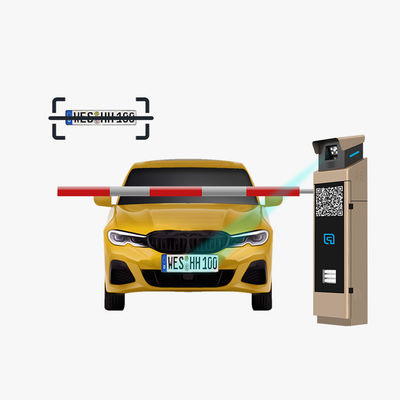

How does the License Plate Recognition (LPR) work?
- The LPR system captures images of vehicle license plates as they approach the barrier, automatically identifying and logging them for entry and exit without physical tickets.
Is the RPL-XY01-LED suitable for outdoor use?
- Yes, the RPL-XY01-LED is designed to be weather-resistant, making it suitable for both indoor and outdoor installations.
How does the ticketless operation benefit users?
- Ticketless operation reduces wait times and streamlines the parking process, allowing for quick and hassle-free entry and exit.
Can the system be monitored remotely?
- Yes, operators can monitor and control the RPL-XY01-LED remotely, receiving real-time alerts for any issues or unauthorized access attempts.
What kind of maintenance does the system require?
- The RPL-XY01-LED requires minimal maintenance, primarily periodic checks of the camera and barrier mechanisms to ensure optimal performance.
Is the LED display customizable?
- Yes, the LED display can be configured to show various messages, including status updates and instructions for drivers.
Can the system handle high traffic volumes?
- Absolutely. The RPL-XY01-LED is designed to efficiently manage high traffic volumes, ensuring smooth operations even during peak times.
What security features are included?
- The system includes advanced security protocols to prevent unauthorized access and ensure that only registered vehicles can enter the parking facility.
How can I integrate the RPL-XY01-LED with existing parking management systems?
- The RPL-XY01-LED is designed for compatibility with various parking management systems, and integration can be facilitated through API connections or custom configurations based on your specific requirements.
