License Plate Recognition Parking System
Created with Pixso. LPR Camera Parking Controller ANPR Access Control Systems With P3 LED Display

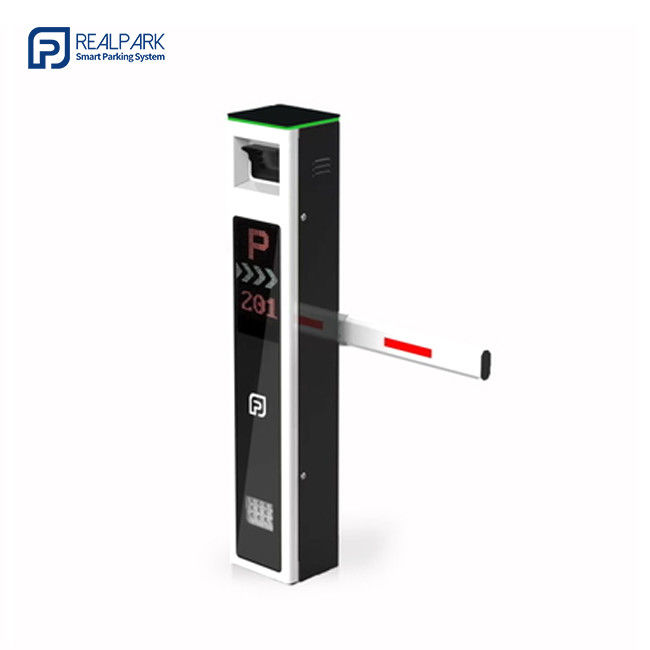

LPR Camera Parking Controller ANPR Access Control Systems With P3 LED Display

Brand Name: Realpark
Model Number: RPL-YY04
MOQ: 1 set
Price: Welcome to contact us!
Delivery Time: 2-3 weeks
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Detail Information
Place of Origin:
Guangdong, China
Certification:
CE and ISO9001
Part Number:
RPL-YY04
Minimum Illumination:
0.01Lux
Aperture:
Fixed Aperture
LED Screen Size:
L192cm*H384cm
LED Screen Description:
(P3 Full-color LED Eight-line Display)
Resolution:
Two Pieces Of Single LED Module 64*64 Dot-matrix
Products Size::
285*253*1563mm
Net Weight::
≈50kgs
Packaging Details:
285*253*1563mm/50kgs/Carton
Supply Ability:
1000 set/Month
Highlight:

LPR Camera Parking Controller

,

LED ANPR Access Control Systems

,

LED LPR Parking Controller

Product Description

LPR Camera Parking Controller with P3 full-color LED Display All-in-one Machine


The RPL-YY04 is an advanced all-in-one parking management solution that integrates a License Plate Recognition (LPR) camera with a vibrant P3 full-color LED display. This innovative device is designed to enhance parking efficiency and security for various environments, including commercial parking lots, residential complexes, and event venues.



Pro33-9



Specification
Part Number RPL-YY04
LED Screen Size L192cm*H384cm
(P3 full-color LED eight-line display)
Resolution Two Pieces of Single LED module 64*64 Dot-matrix
Car License Plate Camera Picture Output 2 Million/3 Million/4 Million Mixel JPEG
Minimum illumination 0.01Lux
Aperture Fixed Aperture
Focal Length 6mm
Storage Interface Support SD2.0 Standard
Micro SD(TF) Card, Max 32G
Wide Dynamic Range ≥100dB
X04 Main Board Voice Remind Temporary Cars and Vip Cars,
Welcome to you, Have a nice day, etc.
Show Support Multi-LED Module
Barrier Gate Voltage AC220V±10%,50Hz/60Hz
Motor Type The Sixth Generation Brushless DC Motor
Working Temperature -20°C~ +70°C
Ambient Humidity 5% to 95%
Fixed Direction Can be interchanged left and right
(Need to add accessories)
Pole Length ≤ 6 meters straight/curved pole
≤ 5.5 meters two columns
≤ 4.5 meters three columns
Input Signal Open, close, stop, ground sense, anti-smashing
Motor Power 100W
Remote Control Frequency 430Mhz
General Parameters Protection Class IP42,Certain Dustproof and Waterproof
Operating Temperature -10℃~60 (Optional Thermostat)
Working Humidity 5%~85%
Power Consumption 160W MAX
Equipment Size 285*253*1563mm(Width*Thickness*Height)
Weight ≈50kg
Pro33-8


RPL-YY04 Integrated Barrier Gate Ticketless Parking Controller

RPL-YY04 is positioned as a professional barrier gate integrated ticketless parking controller, integrating barrier gate, LPR algorithm, high-definition camera, fill light, L192cm*H384cm (P3 full-color LED eight-line display), single LED display in the One. Module 64*64 dot matrix resolution. RPL-YY04 license plate recognition all-in-one machine is a high-end license plate recognition controller product carefully designed by Realpark. The system supports mobile payment, non-inductive payment, dynamic QR code scanning for unlicensed vehicles to enter and exit, LCD screen custom leisure time advertisements, electronic coupons, electronic invoices and other functional features, which can meet the requirements of pure license plates in the parking lot. Identify the system application environment to facilitate on-site installation, commissioning and maintenance.It is widely applicable to the following scenariosPro33-12 (2)









The product has a unique appearance and strong performance, giving people a sense of low-key, luxury, calm and grandeur




The main material is high-strength carbon steel. The front of the fuselage is laminated with a whole piece of tempered glass. The fuselage adopts geometric structure and sharp design. The combination of silver, white and black brings you a more shocking vision.














Recognition Widely License plate recognition algorithm exception handling function is powerful




Using the deep learning license plate recognition algorithm independently developed by Realpark, the accuracy rate of license plate recognition can reach more than 99%.



The image processing unit cooperates with intelligent exposure compensation technology to capture the optimal picture for identification in complex lighting environments such as strong light, weak light and backlight.



For license plate recognition under abnormal phenomena such as no license plate, defaced license plate, trouble license plate, and bad weather environment, the system will start the abnormal processing or fuzzy matching function to optimize the recognition results

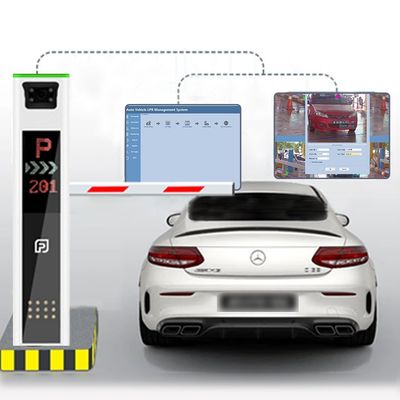

Support Multiple parking solutions Wide Range of Applications




At present, we provide LPR parking, ticket parking, RFID card parking, UHF parking and other separate parking solutions, and can also be used in combination with two or more solutions. We provide the best parking solution according to your actual project needs.



Smart parking solutions make unattended parking the trend of the future. Car owners use license plate recognition to enter and exit the parking lot through the parking lot for electronic payment, central payment, cash payment, or credit card payment. Background management personnel use the platform for round-the-clock monitoring and maintenance. The Realpark parking management system greatly reduces labor costs and maintenance costs, and also improves management efficiency.


Pro33-13









Self-Developed Software and Hardware Intergrated Platform, More Perfect Performance, Support Customization




The self-developed license plate recognition all-in-one machine and Realpark license plate recognition parking management system are connected together to improve the intelligent level of equipment, reduce the difficulty of parking lot management, strengthen the emergency response capability of the parking lot, and reduce operating costs. Compared with the traditional parking management system, the management efficiency is higher, the cost is lower, and the application is more abundant.



Self-developed software, hardware and cloud platform, more perfect performance, support special function customization.





Pro33-17
