Turnstile
Created with Pixso. 4 Pairs Infrared Swing Barrier Gate Turnstile For Supermarket

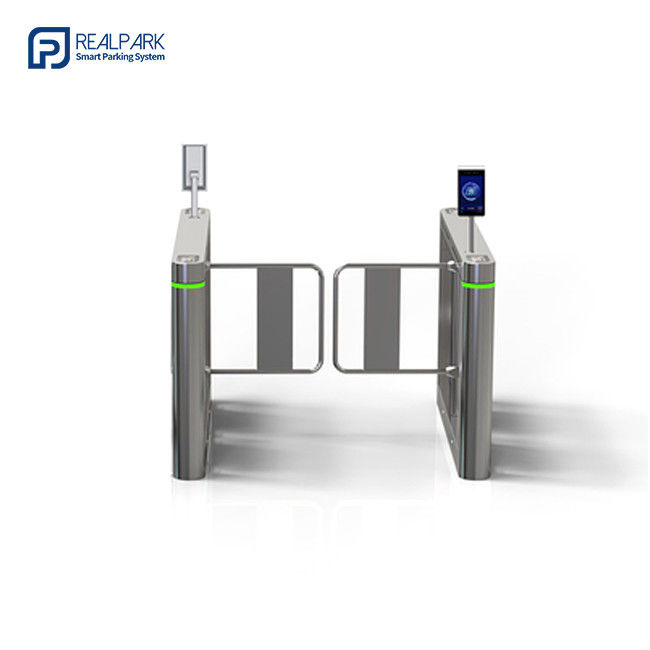

4 Pairs Infrared Swing Barrier Gate Turnstile For Supermarket

Brand Name: REALPARK
Model Number: YB309-B02M-B
MOQ: 2 sets
Price: Welcome to contact us!
Delivery Time: 1-2 weeks
Detail Information
Place of Origin:
Guangdong, China
Certification:
CE and ISO9001
Product Name:
Anti-collision Turnstile Swing Gate
Application:
Office School Park Supermark Subway
Working Temperature:
-25℃~+75℃
Material:
304 Stainless Steel
Size:
1500*150*1015mm (L*W*H)
Channel Width:
550-1100mm
Infrared Quantity::
4 Pairs
Drive Motor:
DC Brushless Motor DC24V
Package Size:
1550*210*110mm
Weight:
50kgs
Packaging Details:
1550*210*110mm/set/50kgs/Carto,1580*230*120mm/set/65kgs/Wooden
Supply Ability:
1000 Set/Sets per Month
Highlight:

Infrared Swing Barrier Gate

,

Infrared Swing Barrier Gate Turnstile

,

Supermarket Infrared Swing Barrier Gate Turnstile

Product Description
Swing Turnstile Gate with Infrared Quantity 4 Pairs for Supermarket



4 Pairs Infrared Swing Barrier Gate Turnstile For Supermarket 0
4 Pairs Infrared Swing Barrier Gate Turnstile For Supermarket 1
4 Pairs Infrared Swing Barrier Gate Turnstile For Supermarket 2
Specification

Automatic Induction Speed Lane Turnstile
Factory Entrance Access Control System Swing Barrier Turnstile Gate For Supermarket Swing Turnstile
Door body material:
High-strength polycarbonate material (acrylic)
or stainless steel tube
Status description:
LED indicators are set on both sides of the chassis
(displaying three states of blue, red and green)
Power supply voltage:
220VAC±10%/15%, 50HZ±4%
Passing speed:
30-40 people/min
Average number of failure-free times:
3.5 million times
Relative temperature:
5%~90% no condensation
Waterproof and dustproof grade:
Above IP24
Swing Turnstile Gate
Features:
♤ Single and double movement;
♤ Digital movement;
♤ Anti-collision swing gate;
♤ Indoor use;
♤ DC brushless series;
♤ SUS304 stainless steel chassis,1.2mm;
♤ Grooving, wire drawing;
♤ Hall digital positioning, return in case of resistance, Horizontal movement;
♤ Stainless steel 304 or acrylic swing arm;
♤ Indoor and outdoor use.
4 Pairs Infrared Swing Barrier Gate Turnstile For Supermarket 3
4 Pairs Infrared Swing Barrier Gate Turnstile For Supermarket 4
4 Pairs Infrared Swing Barrier Gate Turnstile For Supermarket 5

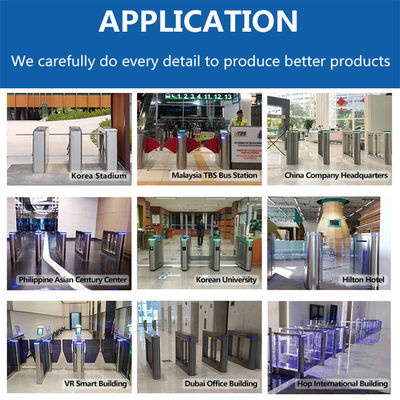

Applications of Swing Turnstile Gate

  1. Office Buildings

    • Used to manage employee and visitor access, ensuring a secure entry point while allowing smooth flow for authorized personnel.
  2. Educational Institutions

    • Ideal for controlling access to schools and universities, providing a secure environment for students and staff.
  3. Transportation Hubs

    • Effective in airports, train stations, and bus terminals to regulate passenger entry and enhance security.
  4. Government Facilities

    • Suitable for sensitive areas requiring strict access control, ensuring that only authorized individuals can enter.
  5. Event Venues

    • Used to manage access during concerts, exhibitions, and other events, allowing entry only for ticket holders or authorized personnel.
  6. Fitness Centers and Gyms

    • Provides secure entry for members while restricting access to unauthorized individuals, enhancing personal security and belongings.
  7. Shopping Malls

    • Helps control foot traffic and access to restricted areas, improving safety for shoppers and staff.
  8. Healthcare Facilities

    • Ensures secure access to hospitals and clinics, protecting sensitive areas while allowing patient and visitor entry.
  9. Corporate Campuses

    • Ideal for large organizations, managing access across multiple buildings and enhancing employee safety.
  10. Construction Sites

    • Used to control access to construction areas, ensuring only authorized personnel can enter, enhancing site security.
