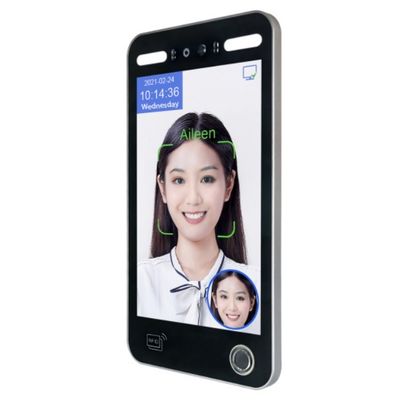

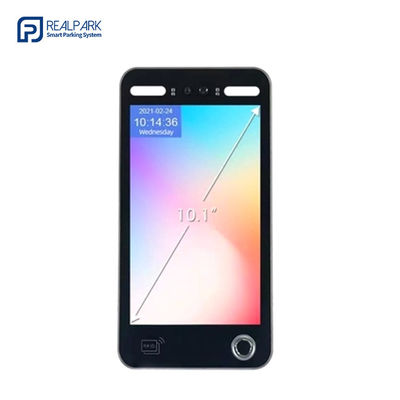

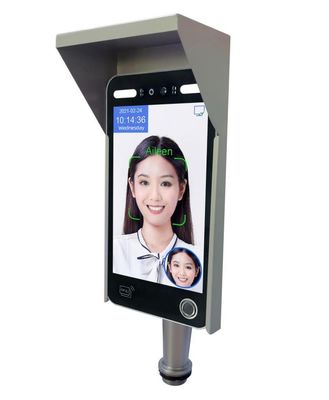

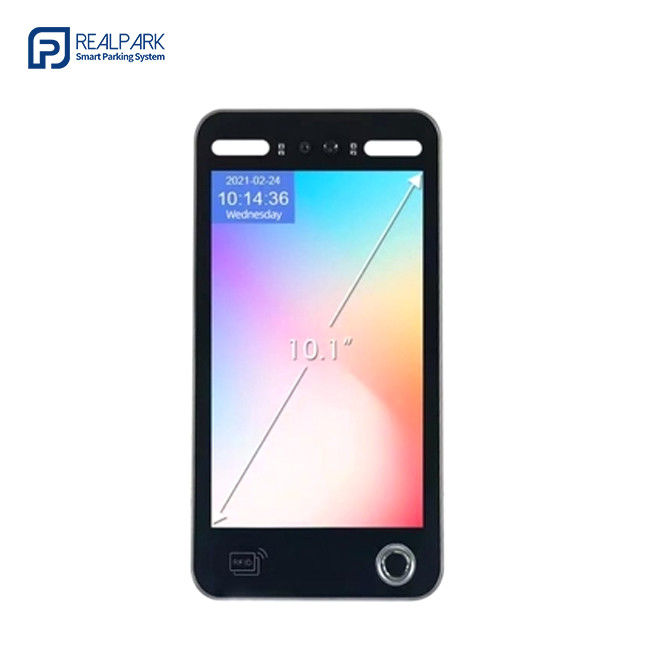

Face Recognition Device 5-inch Card Finger Facial Recognition Terminal

Part Number: RPH1-50

Application: The product is mainly used for identity authentication in entrance and exit scenarios, providing multiple verification methods such as face recognition, radio frequency recognition, fingerprint recognition, etc., and applying AI algorithms in scenarios. The software level uses the industry-leading face recognition algorithm based on the Linux system to provide users with stable, reliable, fast and accurate recognition software applications; the hardware level uses mainstream components in the industry, and the overall quality is reliable. It can be widely used in entrance and exit scenarios in office buildings, conference rooms, offices, elevator entrances and other places.

Main Features

① Support binocular liveness detection, facial recognition distance 0.3-1.5m.

② Support photo and video face anti-fake.

③ Support face tracking exposure and accurate face recognition of people in strong backlight environment

④ Unique face recognition algorithm, can accurately recognize faces, face recognition time is less than 0.3s

⑤ Use LINUX operating system, the system is stable, and the average trouble-free

     operation time MTBF＞50000h

⑥ Support 1.2w face comparison library and 80000 recognition records,

     (maximum capacity of 3000 when optional fingerprint).

⑦ Support TCP/IP, RTSP, HTTP, DHCP, MQTT and other protocols under multiple platforms

     such as Windows/Linux.

⑧ Working temperature: The equipment can work normally in low and high temperature environments

     within the range of -20℃-60℃.

⑨ The product supports IC/ID card radio frequency identification, supports Mifare, DESFire, CPU and

     other types of card identification in the 13.56MHz frequency band.

⑩ Supports ID card recognition in the 125KHz frequency band.

⑪ The device supports the expansion of fingerprint recognition function, and supports up to

     two fingerprints per person.

⑫ Supports anti-tampering alarm, monitors the anti-tampering button signal,

     and links the sound and light alarm

⑬ Supports front-end touch screen parameter configuration, and can perform personnel registration,

     equipment configuration, information query and other operations on the device side

⑭ Supports microphone input audio, speaker output audio, and supports web-side configuration server

     to realize video intercom

⑮ Rich hardware interfaces (I/O, WG26, WG34, RJ45, USB, door magnet, doorbell, door opening, alarm, RS485)

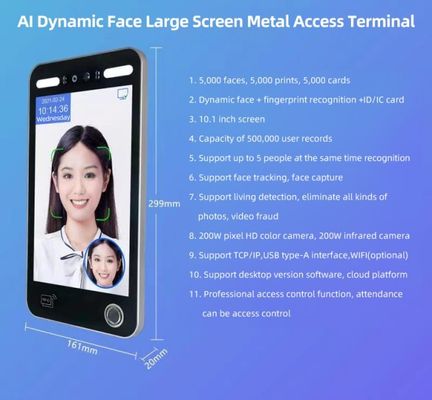

Product Size
