License Plate Recognition Parking System

LPR Parking Controller with 4mp LED LPR Camera License Plate Recognition Solutions

Name: LPR Parking Controller with 4mp LED LPR Camera License Plate Recognition Solutions
Brand: Shenzhen Realpark Co., Ltd.
SKU: RPL-XY8-LED
Price: 491.00 USD
Availability: InStock

Brand Name:	Realpark
Model Number:	RPL-XY8-LED
MOQ:	1 set
Price:	Welcome to contact us to get quotation.
Delivery Time:	1-2 weeks
Payment Terms:	L/C, T/T, Western Union, MoneyGram, D/A, D/P

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE and ISO9001

Camera Sensor:

1/3" CMOS Image Sensor

Lens:

6mm Fixed Focus Lens

Image Output:

1080P(1920x1080)，960P(1280x960)， 720P(1280x720)，D1(704x576)，CIF(352x288)

Picture Output:

2 Mega-pixel JPEG ~ 5 Mega-pixel JPEG

Video Compression Format:

H.264 High Profile , Main Profile, Baseline , MJPEG

Device Size:

430*290*1460mm（Width*Thickness*Height）

Net Weight:

≈27kgs（43.5*32.5*151cm, Carton Package

Gross Weight:

≈37kgs（45*35*157cm, Wooden Package）

Packaging Details:

139*13*16cm/20kgs/Carton，141*23*28cm/30kgs/Wooden

Supply Ability:

500 set/Month

Highlight:

Parking Controller LPR Camera

4mp LED LPR Camera

License Plate Recognition LPR Camera

Product Description

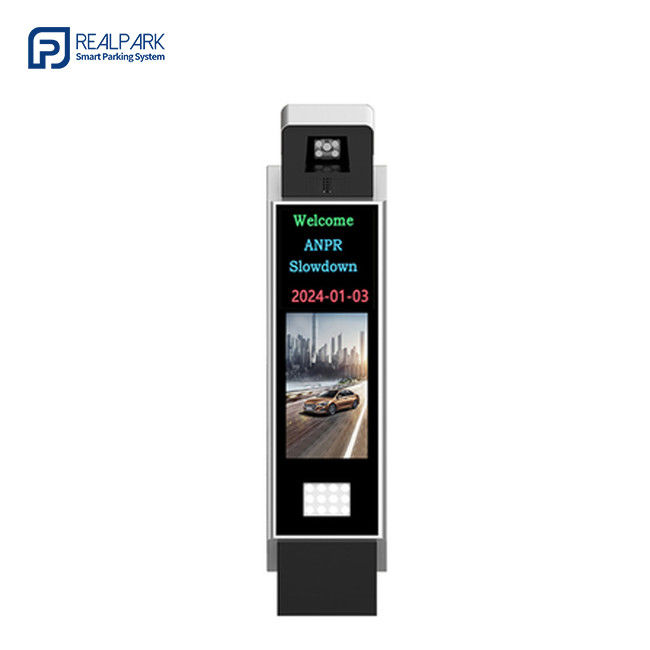

LPR Parking Controller with 4mp LED LPR Camera License Plate Recognition Solutions

Are you looking for a reliable and efficient solution to streamline your parking operations?

This product is a mature and stable license plate recognition all-in-one machine after years of upgrading and improvement. This machine is easy to install, cost-effective and widely accepted by the market.

The equipment is widely used in: government agencies, intelligent buildings, office buildings, high-end property communities, colleges and universities, enterprises and institutions, industrial and mining enterprises and other places.

Look no further than the LPR Camera RPL-XY8-LED License Plate Recognition Machine and Application. This innovative technology is designed to simplify the management of parking facilities, saving you time and resources. With its advanced features and accurate license plate recognition, this system is the perfect choice for businesses and organizations looking to optimize their parking

operations.

Product Specifications:

Products Model		RPL-XY8-LED
ALPR Camera	CPU	Specialized license plate recognition chip
	Sensor	1/3" CMOS Image Sensor
	Minimum illumination	0.01Lux
	Lens	6mm fixed focus lens
	Built-in light	4 high-power LED white lights
	Plate recognition accuracy	≥98%
	Triggering mode	Video trigger, coil trigger
	Image output	1080P(1920x1080),960P(1280x960), 720P(1280x720),D1(704x576),CIF(352x288)
	Picture output	2 mega-pixel JPEG
	Video compression format	H.264 High Profile , Main Profile, Baseline , MJPEG
	Network interface	10/100,RJ45
	IO	2 input & 2 output 3.5mm connecting terminals
	Serial interface	2 x RS485
	Audio Interface	1 input & 1 output
	SD Card	Support SD2.0 standard Micro SD(TF) card with a maximum capacity of 32G
	Power Supply	AC220V
	Power Consumption	≤7.5W
	Working Temperature	-25℃~+70℃
Main Component Parameters
LED Screen X04 Control Board	LED Screen Size	260mm*260mm ( P4 LED 4 lines )
	LED Screen Resolution	LED module: 6432 Advertisement Screen: Video Size 260mm440mm ( Display size 230mm*410mm )
	Voice	Temporary vehicles can be broadcast, the monthly car is welcome, and the journey is safe and other vehicle voice reminders
	Display	Support a variety of LED modules
	Chip	ARM Cortex-M Series RISC core core chip
	Screen Control	Supports standard horizontal and vertical screens, which can be switched by pressing the button;
	Display Control	Supports three-color, two-color, and multiple color displays (hardware and software vary);
	ALPR Camera Type	Connect with mainstream cameras such as A/B/C and Dahua; 4. Provide SDK development kit and free technical guidance; 5. Provide a full range of docking solutions to support the Internet of Things, car wash systems, license plate recognition systems, and platform payment system debugging and matching. The connection supports offline use, encryption, and personalized development; 6. Supports two-line and four-line display screens, equipped with traffic light interface; 7. Built-in voice broadcast system, the real voice is loud and clear; 8. Universal voice can be expanded to meet personalized needs.
	Secondary Development	Provide SDK development kit and free technical guidance; 5. Provide a full range of docking solutions to support the Internet of Things, car wash systems, license plate recognition systems, and platform payment system debugging and matching. The connection supports offline use, encryption, and personalized development; 6. Supports two-line and four-line display screens, equipped with traffic light interface; 7. Built-in voice broadcast system, the real voice is loud and clear; 8. Universal voice can be expanded to meet personalized needs.
	Full Integrated Solution	Provide a full range of docking solutions to support the Internet of Things, car wash systems, license plate recognition systems, and platform payment system debugging and matching. The connection supports offline use, encryption, and personalized development;
	Screen Type	Supports two-line and four-line display screens, equipped with traffic light interface;
	Voice System	Built-in voice broadcast system, the real voice is loud and clear;
	Customization	Universal voice can be expanded to meet personalized needs.
	Power interface	12V mode, input 5A, output can be equipped with 2 modules, current >3.5A, built-in anti-reverse connection function
General Parameters	Protection class	IP42,Dustproof and Waterproof Function
	Power Supply	Meanwell LPS-150-12(12V 12.5A),1599730mm (LWH)
	Working Temperature	‘-10℃～60℃(Optional thermostat)
	Working humidity	5%-85%
	Power consumption	150W Max, AC 220V±10％/50Hz
	Device size	4302901460mm(WidthThicknessHeight)
	Net Weight	≈27kgs(43.532.5151cm, Carton Package
	Gross Weight	≈37kgs(4535157cm, Wooden Package)

The Automated, Hands-Free No-Stop System is an innovative solution that allows vehicles to enter and exit seamlessly without stopping, enhancing traffic flow and user convenience in smart vehicle access management.

LPR Parking Controller with 4mp LED LPR Camera License Plate Recognition Solutions 0

Capable of recognizing license plates from over 160 countries worldwide, our system boasts an impressive recognition rate exceeding 98%.

LPR Parking Controller with 4mp LED LPR Camera License Plate Recognition Solutions 1

The Multi-Lanes Monitoring & Management System is a sophisticated solution designed to efficiently oversee and control vehicle traffic across multiple lanes. This advanced system utilizes high-resolution cameras and intelligent software to provide real-time monitoring, enabling seamless management of vehicle flow, access control, and security. With its ability to capture and analyze data from various lanes simultaneously, the system ensures optimal performance in busy environments such as toll plazas, parking facilities, and urban roadways. Enhanced by features like automatic license plate recognition and analytics, it empowers operators to make informed decisions and improve overall traffic management.

LPR Parking Controller with 4mp LED LPR Camera License Plate Recognition Solutions 2

FAQ:

Q1: What is a Realpark License Plate Recognition (LPR) camera system?
A license plate recognition camera system uses optical character recognition to read vehicle license plates. It is commonly used for access control, parking management, and law enforcement.

Q2: How does your Reealpark LPR system work?
Our LPR system uses a high-resolution camera to capture vehicle license plate images, processes the images, and then uses advanced algorithms to extract and recognize license plate information.

Q3: What are the main features of your Realpark all-in-one LPR machine?
Our all-in-one machine includes real-time license plate recognition, access control, data logging, and integration with other security systems.

Q4: Is your Realpark LPR system suitable for outdoor use?
Yes, our LPR system is designed to withstand all kinds of weather conditions and is suitable for outdoor installation.

Q5: Can your system be integrated with existing security systems?
Of course! Our LPR system can be easily integrated with existing security and access control systems to enhance overall security.

Q6: What types of vehicles can your Realpark LPR system recognize?
Our system can recognize a variety of vehicles, including cars, trucks, and motorcycles, regardless of their license plate format.

Q7: How accurate is the license plate recognition?
Our LPR system has a recognition accuracy rate of over 97%, depending on environmental conditions and license plate visibility. The recognition accuracy rate in some countries exceeds 99.9%.

Q8: What kind of maintenance does the Realpark LPR system require?
Regular maintenance includes cleaning the camera, LED display, main control board of the all-in-one machine, updating software and checking system connections to ensure optimal performance.

Q9: What is the installation process of your Realpark LPR system?
Installation usually includes the license plate recognition all-in-one machine, connecting power and configuring software. Our team provides full support throughout the process.

Q10: What support options do you offer after purchase?
We provide technical support, software updates and maintenance services to ensure that your system runs smoothly.

Q11: Is there a subscription fee to use the Realpark LPR system?
Our LPR system has a one-time basic charge, and lifetime technical support and free upgrades are provided after it is sold out.

Q12: What happens if the system fails or malfunctions?
If a failure occurs, we have a professional support team that can troubleshoot and solve the problem as soon as possible.

Q13: How can I get a quote for your Realpark LPR system?
You can request a quote through our website or contact our sales team directly for personalized advice based on your specific needs.
